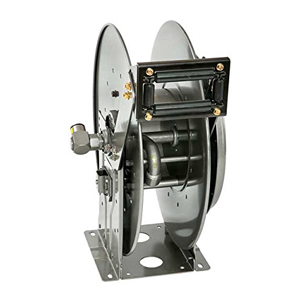

Hannay 800 and N800 Series Hose Reel

Hannay 800 and N800 Series Hose Reel

Call For Pricing

SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. Optional configurations are available, must specify, click for more information.

Category: Tags: , ,

Description

Can handle 3/4″ or 1″ I.D. hose

  • Non-sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet: 90° balanced pressure swivel joint 1″ female NPT threads.
  • Standard outlet: 1″ female NPT threads.
  • Standard pressures to 2,000 psi (138 bar), available up to 6,000 psi (414 bar) – must specify.
  • Temperatures from -40° F to +250° F (-40° C to +121° C).
  • Contact us for other available pressures and temperatures.
  • 4-way roller assembly.
  • Constant tension is available, contact us for more information.
  • Standard N series has a narrow frame and compact mounting base (view photo)



Model Hose Capacity
N816-25-26-10.5B 3/4” holds 60 feet           1” holds 35 feet
N818-25-26-10.5B 3/4” holds 70 feet           1” holds 50 feet
816-25-26-10.5B 3/4” holds 60 feet           1” holds 35 feet
818-25-26-10.5B 3/4” holds 70 feet           1” holds 50 feet
820-25-26-10.5A 3/4” holds 85 feet           1” holds 75 feet
820-30-31-10.5A                                        1” holds 100 feet
820-30-31-15.5A 3/4” holds 100 feet
