$311.00 – $425.00
Installed on aboveground storage tanks for the purpose of containing small spills and drips from the fill nozzle. 5 gallon capacity. Steel construction. Lockable and white powder coatis standard. Black is also available. ULC listed.
- Description
- Additional information
Description

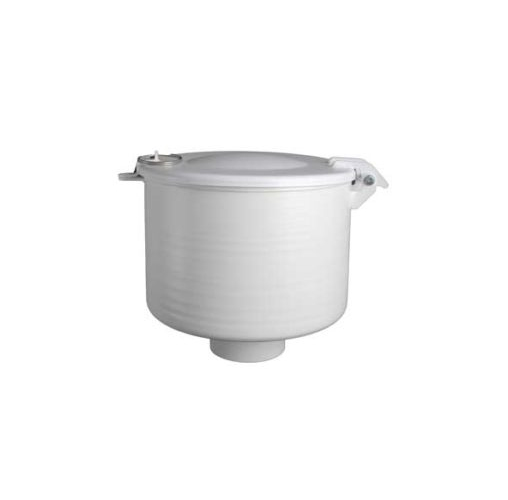

FIG 516Tank top spill containers are designed to contain small spills that occur at the fill point on aboveground storage tanks.
Standard Features
- 5 gallon (18.93 liters) capacity
- Hinged cover is lockable with a padlock
- 516 has female threads and a centered connected
- 516D includes integral drain assembly
- 516M has male threads
- 516O has offset connection for space saving
Construction Details
- Body: 12 gauge spun steel, powder coated white
- Cover: 14 gauge steel, powder coated white
- Drain valve: Brass
- Drain o-ring: Viton®
Option Types:
|
Figure |
Suffix |
Size |
Description |
Weight (lbs) |
|
|
516 |
0200 ACPW |
2″ – 5 Gal |
Female, Spill Container, No Drain, Centered, Coated White |
17 |
|
|
516 |
0400 ACPW |
4″ – 5 Gal |
Female, Spill Container, No Drain, Centered, Coated White |
21 |
|
|
516D |
0200 ACPW |
2″ – 5 Gal |
Female, Spill Container, W/Drain, Centered, Coated White |
17 |
|
|
516D |
0400 ACPW |
4″ – 5 Gal |
Female, Spill Container, W/Drain, Centered, Coated White |
21 |
|
|
516M |
0200 ACPW |
2″ – 5 Gal |
Male, Spill Container, No Drain, Centered, Coated White |
16.5 |
|
|
516M |
0400 ACPW |
4″ – 5 Gal |
Male, Spill Container, No Drain, Centered, Coated White |
19 |
|
|
516MD |
0200 ACPW |
2″ – 5 Gal |
Male, Spill Container, W/Drain, Centered, Coated White |
17.5 |
|
|
516MD |
0400 ACPW |
4″ – 5 Gal |
Male, Spill Container, W/Drain, Centered, Coated White |
20.5 |
|
|
516MO |
0200 ACPW |
2″ – 5 Gal |
Male, Spill Container, No Drain, Offset, Coated White |
17 |
|
|
516MO |
0400 ACPW |
4″ – 5 Gal |
Male, Spill Container, No Drain, Offset, Coated White |
19 |
|
|
516MO |
0400ACEVR |
4″ – 5 Gal |
Male, Spill Container, No Drain, Offset, Coated White |
19 |
|
|
516MOD |
0200 ACPW |
2″ – 5 Gal |
Male, Spill Container, W/Drain, Offset, Coated White |
17.5 |
|
|
516MOD |
0400 ACPW |
4″ – 5 Gal |
Male, Spill Container, W/Drain, Offset, Coated White |
20.5 |
|
|
516O |
0200 ACPW |
2″ – 5 Gal |
Female, Spill Container, No Drain, Offset, Coated White |
17 |
|
|
516O |
0400 ACPW |
4″ – 5 Gal |
Female, Spill Container, No Drain, Offset, Coated White |
21 |
|
|
516O |
0400ACEVR |
4″ – 5 Gal |
Female, Spill Container, No Drain, Offset, Coated White |
21 |
|
|
516OD |
0200 ACPW |
2″ – 5 Gal |
Female, Spill Container, W/Drain, Offset, Coated White |
17 |
|
|
516OD |
0400 ACPW |
4″ – 5 Gal |
Female, Spill Container, W/Drain, Offset, Coated White |
21 |
FIG 516 Specification SheetInstallation Diagrams- Direct Fill Female Threaded
Installation Diagrams- Direct Fill Male Threaded
Additional information
| Weight | 19 lbs |
|---|---|
| Type | 516—0200 ACPW 2" – 5 Gal Female, No Drain, Centered, Coated White, 516—0400 ACPW 4" – 5 Gal Female, No Drain, Centered, Coated White, 516D–0200 ACPW 2" – 5 Gal Female, W/Drain, Centered, Coated White, 516D–0400 ACPW 4" – 5 Gal Female, W/Drain, Centered, Coated White, 516M–0200 ACPW 2" – 5 Gal Male, No Drain, Centered, Coated White, 516M–0400 ACPW 4" – 5 Gal Male, No Drain, Centered, Coated White, 516MD-0200 ACPW 2" – 5 Gal Male, W/Drain, Centered, Coated White, 516MD-0400 ACPW 4" – 5 Gal Male, W/Drain, Centered, Coated White, 516MO-0200 ACPW 2" – 5 Gal Male, No Drain, Offset, Coated White, 516MO-0400 ACPW 4" – 5 Gal Male, No Drain, Offset, Coated White, 516MO-0400 ACEVR 4" – 5 Gal Male, No Drain, Offset, Coated White, 516MOD0200 ACPW 2" – 5 Gal Male, W/Drain, Offset, Coated White, 516MOD0400 ACPW 4" – 5 Gal Male, W/Drain, Offset, Coated White, 516O–0200 ACPW 2" – 5 Gal Female, No Drain, Offset, Coated White, 516O–0400 ACPW 4" – 5 Gal Female, No Drain, Offset, Coated White, 516O–0400ACEVR 4" – 5 Gal Female, No Drain, Offset, Coated White, 516OD-0200 ACPW 2" – 5 Gal Female, W/Drain, Offset, Coated White, 516OD-0400 ACPW 4" – 5 Gal Female, W/Drain, Offset, Coated White |
