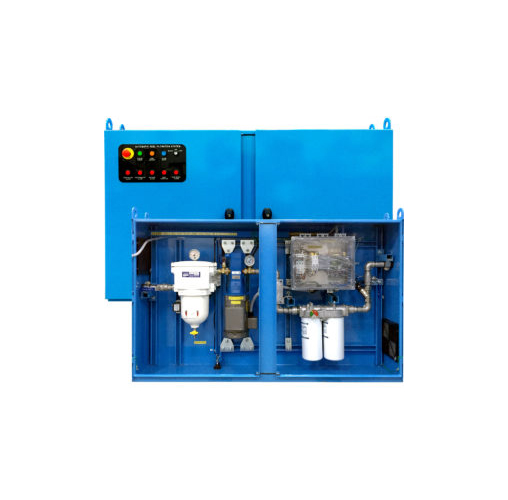

The STS 6010 Intelligent Fuel Management System is an enclosed system designed to optimize and maintain diesel fuel indefinitely. Adding an STS 6010 system will remove particulate, separate water, and condition stored fuel. The STS 6010 has the capability of maintaining multiple tanks with a single system. This innovative process stabilizes diesel and bio-fuels, eliminates microbial contamination, and ensures clean reliable fuel at all times.
Description
The key to ensuring optimal fuel quality requires the removal and prevention of fuel contamination through filtration, the separation and removal of both free and emulsified water, and the conditioning of fuel to reduce the size of particulate clusters. All of these processes together, configured in a kidney loop fashion to maximize the amount of fuel being polished, is exceptionally executed utilizing an AXI Intelligent Fuel Management System.The STS 6010 Intelligent Fuel Management System is an enclosed system designed to optimize and maintain diesel fuel indefinitely. Our innovative fuel polishing process stabilizes diesel and bio-fuels, eliminates microbial contamination, and ensures clean reliable fuel at all times. Ideal applications for STS 6010 systems include main power generators, standby/emergency backup generators, and bulk fuel storage.
Not for use with fluids that have a flash point below 100°F (37.8°C)
| Flow Rate (@60Hz) | 10 GPM/600 GPH (37.9 LPM/2271 LPH) |
| Primary Filter/Water Separator | 10 or 30μ Particulate or 60μ Stainless Steel Screen with Centrifugal Water Separator |
| Secondary Filter/Water Block | 1, 3, 10, 25μ Particulate or 3, 10μ Water Block |
| Fuel Conditioner | LG-X 3000 Inline Conditioner |
| System Controller | Programmable, Fully Automated UL 508A SMART Filtration Controller with BMS/BAS Interface and Digital Text Readout |
| Pump | 3/4 HP Spur Gear Pump |
| Power | 120V 50Hz 15A or 230V 60Hz 15A |
| Plumbing | Stainless Steel |
| Ports | 1” NPT In 1” NPT Out |
| Enclosure Cabinet | NEMA 12 (IP55), 13 (IP65), 3R (IP32), 4 (IP66), and 4X (IP66) Powder Coat or Stainless Steel |
| Dimensions | 37”x 60”x 12” (H x W x D) (94 x 152 x 30 cm) |
| Weight | 513 lbs (232.7 kg) |
| Ideal for Tank Sizes | 6,000-15,000 Gallons (22,712-56,781 Liters) |
