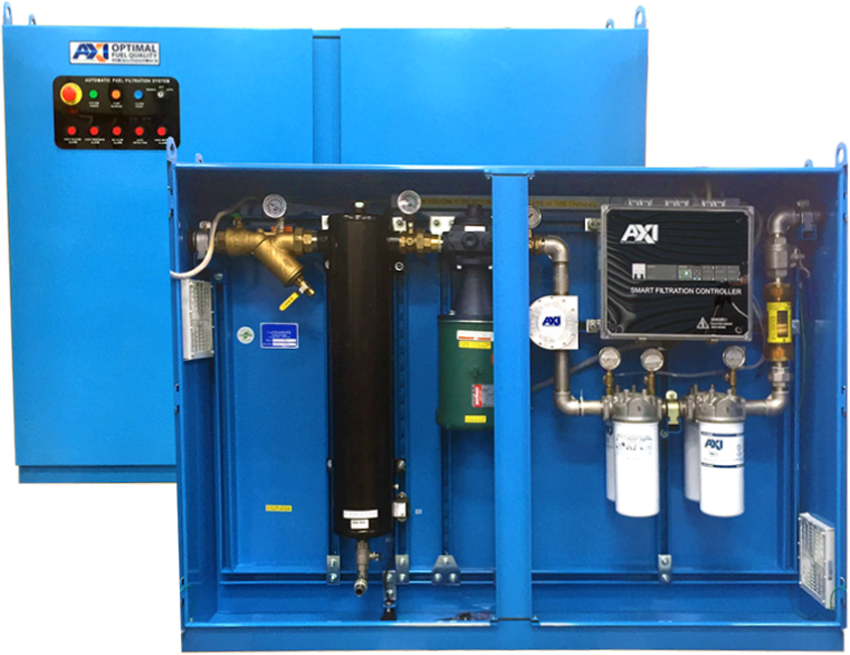

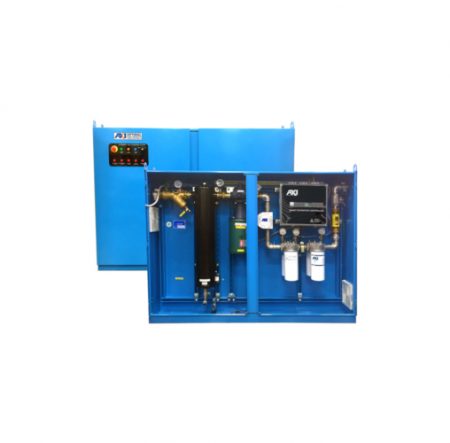

The STS 6040 Intelligent Fuel Management System is an enclosed system designed to optimize and maintain diesel fuel indefinitely. Adding an STS 6040 system will remove particulate, separate water, and condition stored fuel. This innovative process stabilizes diesel and bio-fuels, eliminates microbial contamination, and ensures clean reliable fuel at all times.
Description
The key to ensuring optimal fuel quality requires the removal and prevention of fuel contamination through filtration, the separation and removal of both free and emulsified water, and the conditioning of fuel to reduce the size of particulate clusters. All of these processes together, configured in a kidney loop fashion to maximize the amount of fuel being polished, is exceptionally executed utilizing an AXI Intelligent Fuel Management System.
Not for use with fluids that have a flash point below 100°F (37.8°C)
| Flow Rate (@60Hz) | 40 GPM/2400 GPH (151 LPM/9085 LPH) |
| Y-Strainer | 20 Mesh |
| Primary Filter | 1, 3, 10 or 25μ Particulate or 3, 10μ Water Block |
| Secondary Filter | 1, 3, 10 or 25μ Particulate or 3, 10μ Water Block |
| Fuel Conditioner | LG-X 4000 Inline Conditioner |
| System Controller | Programmable, Fully Automated UL 508ASMART Filtration Controller with BMS/BAS Interface and Digital Text Readout |
| Pump | 5 HP Internal Gear Pump |
| Power | 480V 60Hz 15A or230V 50Hz 15A |
| Plumbing | Stainless Steel |
| Ports | 2” NPT In 1.5” NPT Out |
| Enclosure Cabinet | NEMA 12 (IP55), 13 (IP65), 4 (IP66), and4X (IP66) Powder Coat or Stainless Steel |
| Dimensions | 56” x 72” x 17” (H x W x D) (142 x 183 x 43 cm) |
| Weight | 1005 lbs (455.9 kg) |
| Ideal for Tank Sizes | 20,000-60,000 Gallons (75,708-227,125 Liters) |
